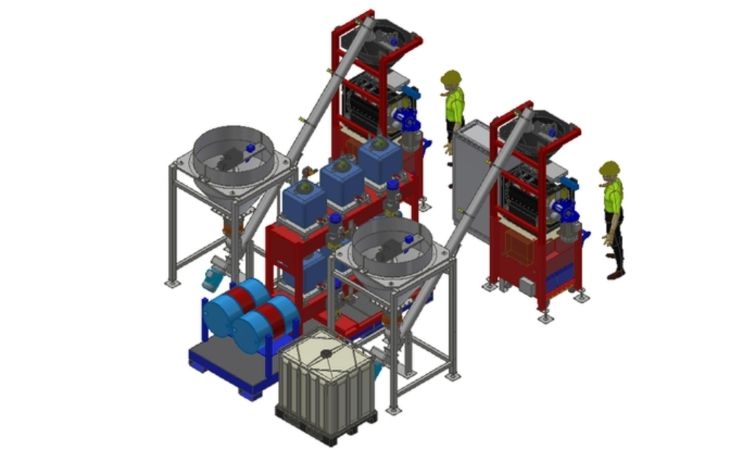

Salvadori Twin Batch 40 – Two rubber granulate mixing systems for sale
A European tire recycling operator offers for sale two used high-performance twin batch mixers for precise dosing and homogeneous blending of rubber granulate with binders, pigments and additives.
Condition
The equipment was manufactured in 2023 an is in excellent condition with minimal use on the clock.
Specifications
| Category | Industrial mixing equipment |
|---|---|
| Target material | Recycled rubber granulate (0.8 – 4.0 mm) |
| Batch capacity | Up to 2 × 50 kg (100 kg combined) |
| Cycle time | 4–6 minutes |
| Output capacity | Approx. 1,200 kg/hour |
| Installed power | 40kW |
| Voltage | 400V / 50Hz |
| Compressed air | 8-10 bar |
| Operation mode | Automatic / Manual |
| Protection class | IP54 |
Technology highlights
- Precision dual batch system: An independent left and right dosing and mixing system ensures accurate, balanced, and highly repeatable batch preparation.
- Advanced chemical dosing: This system provides separate controlled dosing for isocyanate, pigments, catalysts, as well as water, all with weight-controlled precision to ensure maximum consistency and repeatability of every batch.
- High-efficiency paddle mixer: Equipped with a 140 rpm paddle mixer featuring variable speed control via inverter, a Teflon-coated interior to prevent material adhesion, and an electrically controlled discharge valve for precise material release.
- Integrated weighing & control: The system features integrated weighing and control, including load cells for precise granulate dosing, automated recipe management, PLC control, and RFID- enabled recipe selection for efficient and repeatable operation.
Demo of Twin Batch 40 by the manufacturer. | Video by Salvadori.
Operational advantages
- High hourly throughput
- Fast batch cycle
- Precise repeatability
- Reduced material waste Industrial-grade safety system Designed for continuous operation7
What it is designed for
- Colored rubber granulate production
- Sports surfaces
- Safety tiles
- Rubber boards
- Industrial flooring materials
Installation requirements
- Industrial indoor environment
- Flat concrete foundation
- Continuous power, air and water supply
